DESIGN
A J Metal Products have in-house design capabilities to produce mechanical designs to all the major internationally recognised Pressure Vessel design codes and standards.
We produce a full design package of design calculations and CAD drawings, using state of the art leading software packages Autocad ® and Solidworks ® for customer approval and third party design verification by the specified Notified Body, where required.
We can design to the following codes and standards:
- PD 5500 (UK)
- EN 13445 (EEC)
- PED 2014/68/EU (Pressure Equipment Directive) - formerly 97/23/EC
- EN 286-1 (Simple Pressure Vessel Directive)
- BS 5169 (UK)
- EN 286-3 (Railway)
- ASME VIII U stamp (USA and world–wide)
- CODAP (France)
- GOST (Russia)
- AS 1210 (Australia and New Zealand)
- AS 4343 (Australia)
- AD-2000-Merkblatt (Germany)
-

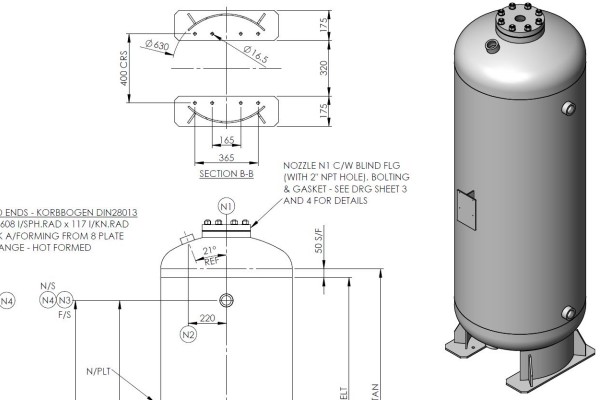

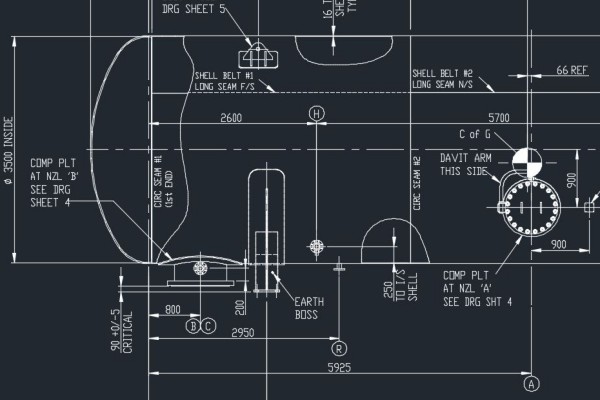

In House CAD Design
-
In House CAD Design
FINITE ELEMENT ANALYSIS
Our design capability also extends to F.E.A. (Finite Element Analysis) which can be used to assess stress concentrations in more complex fabrications,
where traditional calculation methods may not be sufficient and another method is needed to prove the structural integrity of the proposed design.
-

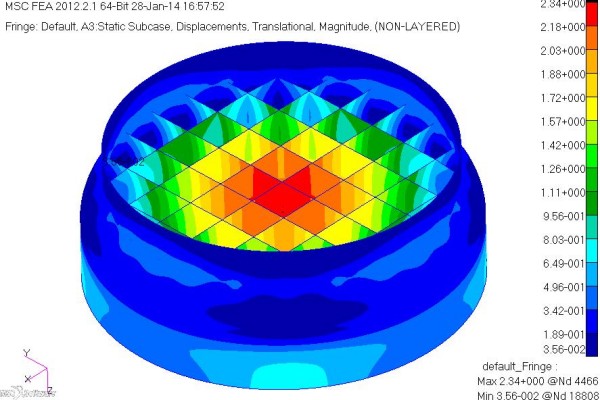

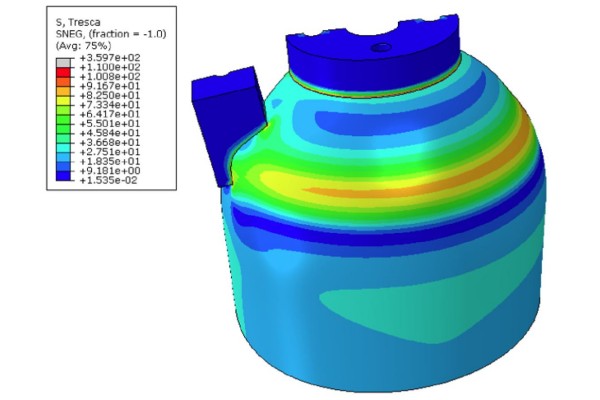

FEA Design
-
FEA Design
3D PRINTING
Occasionally, a 2D drawing is not enough to be able to visualise a complicated design.
We are able to offer a 3D printing service to produce replica plastic scale models of your vessel design, or a particular component or feature.
-

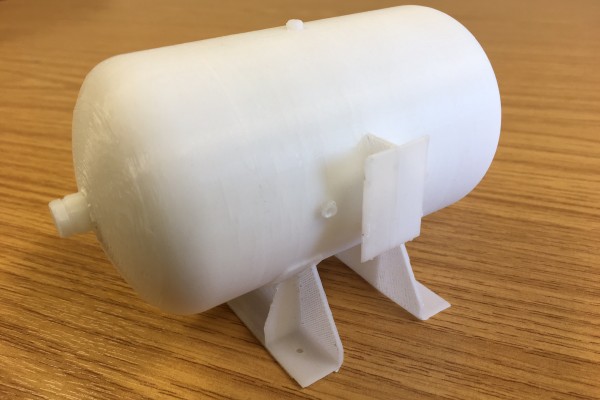

3D Printing of a simple vessel
-

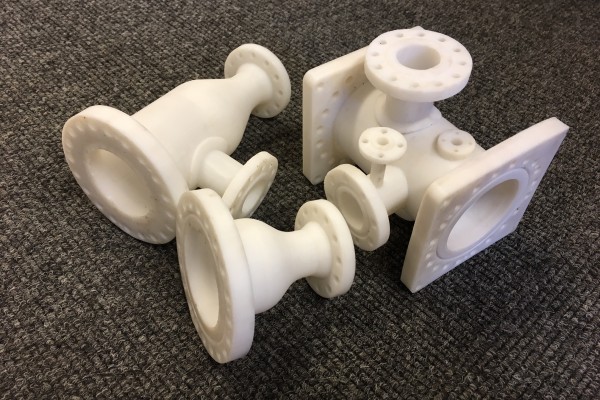

3D Printing of more complex fabrications.
If you have a requirement you would like to discuss, please don't hesitate to get in touch.
Email us
Or call +44(0)1384 74301
